Duogalia 10 Pieces LC UPC Singlemode Fiber Optic Quick Assembly Connector Mechanical Fast Adapter For 0.9 Millimeter 2.0 Millimeter 3.0 Millimeter ...
Why you'll like it
- Rapid Termination — Mechanical design allows for fast assembly without the need for epoxy or polishing.
- Wide Compatibility — Supports multiple cable types including 0.9mm pigtails, round cables, and drop cables.

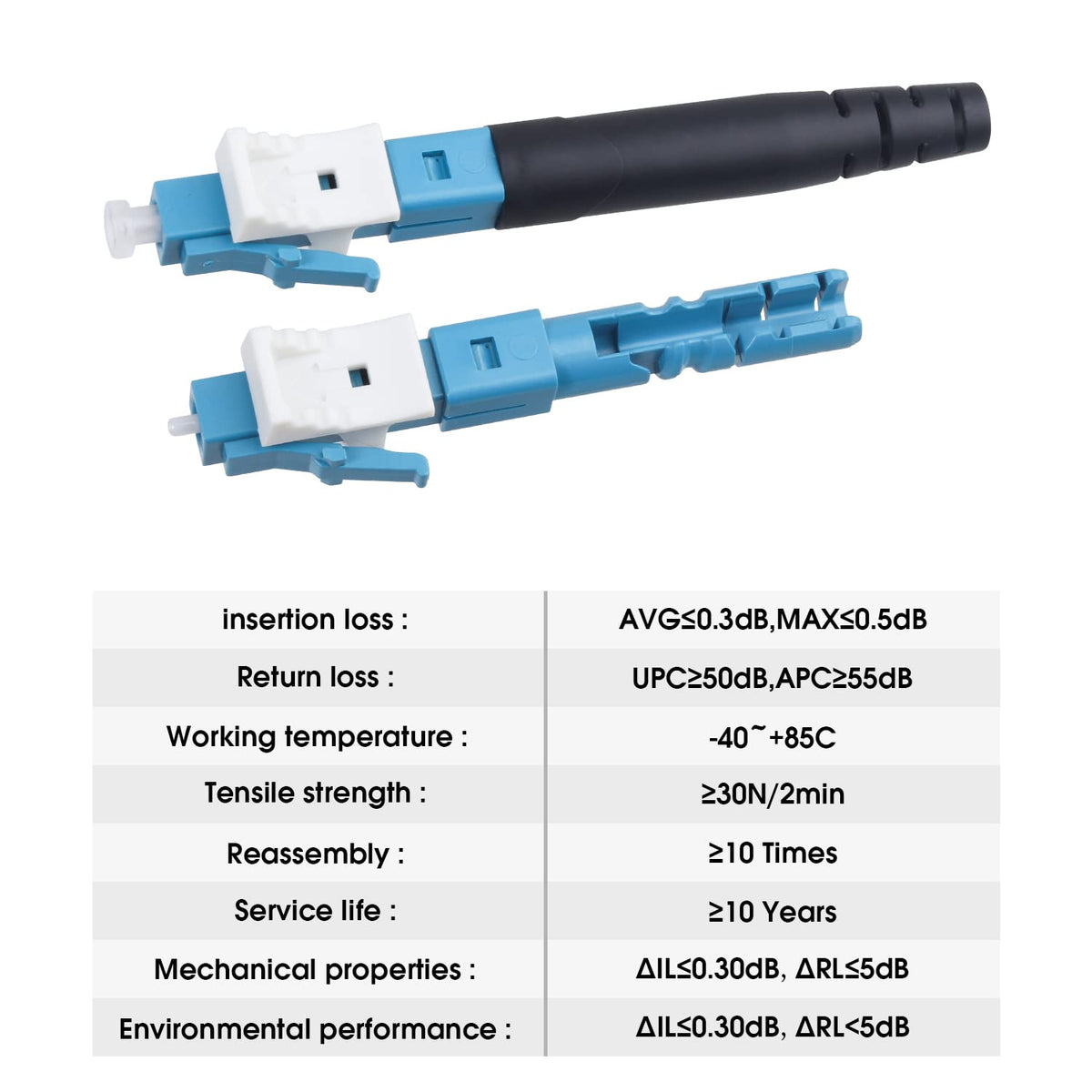

- High Performance — Features low insertion loss of under 0.3dB and high return loss for stable signal quality.
- Exceptional Durability — Constructed with high-performance materials and ceramic cores for heat and impact resistance.
- Long Service Life — Tested for over 500 insertion and removal cycles to ensure reliable long-term connectivity.
Product details
Description
The Duogalia LC UPC Singlemode Fiber Optic Quick Connector offers a efficient solution for rapid fiber termination without the need for complex epoxy or field polishing. Designed for versatility, this connector is compatible with a wide range of cable sizes, including 0.9 millimeter pigtails, 2.0 millimeter and 3.0 millimeter round cables, as well as 2.0 by 1.6 millimeter and 2.0 by 3.0 millimeter drop cables.
Engineered for high performance, these connectors utilize a precision ceramic core and UPC polishing to ensure an insertion loss of less than 0.3 decibels and a return loss greater than 50 decibels. Built to withstand demanding environments, the high-performance material construction provides excellent resistance to high temperatures and physical impact.

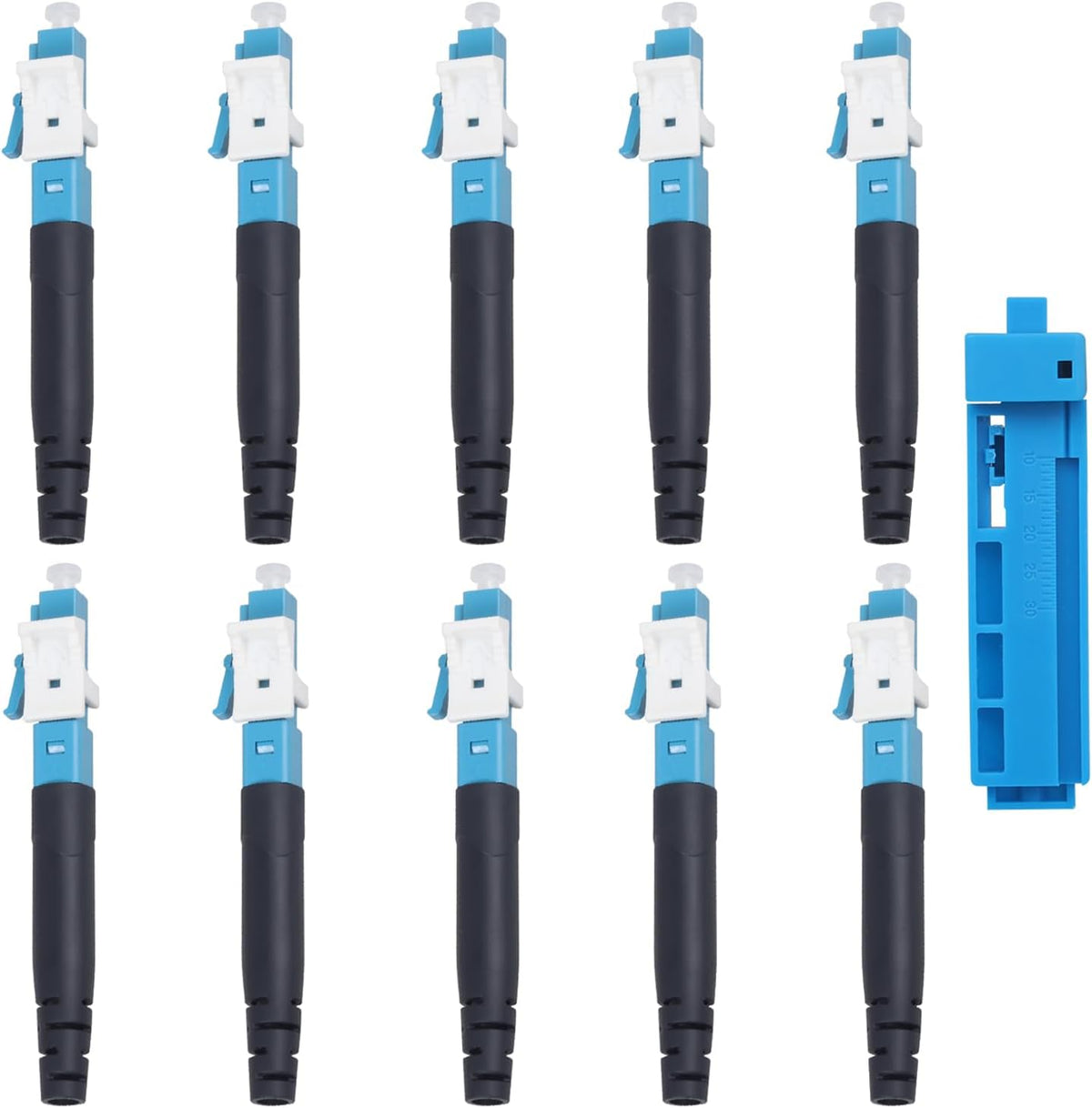

With a design capable of supporting over 500 insertion and removal cycles, these connectors provide consistent, high-repeatability performance for network infrastructure, FTTH installations, and general fiber maintenance tasks. Each kit includes 10 connectors with an integrated fiber guide mechanism to simplify the installation process, making it an ideal choice for technicians requiring quick, reliable, and durable fiber optic connections.
How to use
- Ensure the fiber cable is stripped to the required length using a precision fiber stripper.
- Clean the fiber surface thoroughly.
- Insert the fiber through the boot and into the connector body until it reaches the fiber guide mechanism.
- Secure the cable according to the provided installation jig instructions to ensure proper alignment and mechanical connection.
Ingredients
High-performance engineering plastic housing with precision ceramic ferrule core.
As printed by the brand. Check the pack label if you have an allergy.
Specifications
| Brand | Duogalia |
|---|---|
| Category | Optical |
| Ships from | USA (sourced directly), checked in Navi Mumbai |
| Sold by | Dropy.in |
Ratings & reviews
From our customers
Customers Also Bought
View allFAQs
What is an LC-UPC connector?
An LC-UPC connector is a small form-factor fiber optic connector featuring an Ultra Physical Contact (UPC) polished ferrule. It is widely used for singlemode fiber applications to minimize back-reflection and provide high-quality signal transmission.
Are these connectors suitable for armored fiber cables?
No, these specific mechanical fast connectors are not suitable for use with shielded or armored optical fibers.
What is the insertion loss for this connector?
This Duogalia connector is rated for an insertion loss of less than 0.3 decibels, ensuring minimal signal drop during data transmission.
Is this product authentic and imported from the USA?
Yes, this product is an authentic, high-quality import. Dropy sources these items directly from the USA to ensure you receive genuine components for your technical projects.

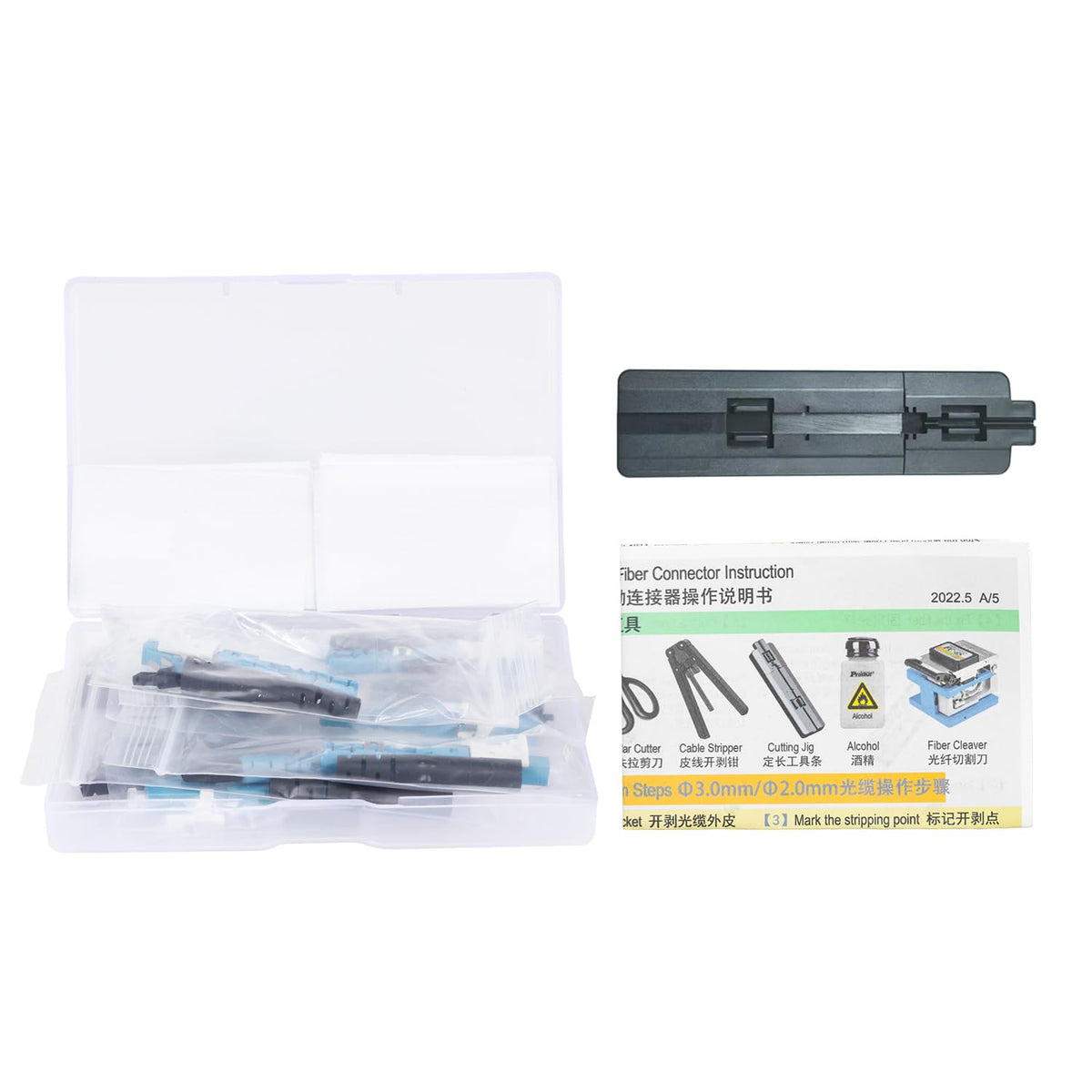

Does the package include tools for installation?
Yes, the kit includes a fiber guide mechanism and the necessary components for precise stripping and installation as specified by the manufacturer.
