Milescraft 1213 Hinge Mate 300 Complete Door Hinge Installation Kit With Latch And Strike Plate Templates
Why you'll like it

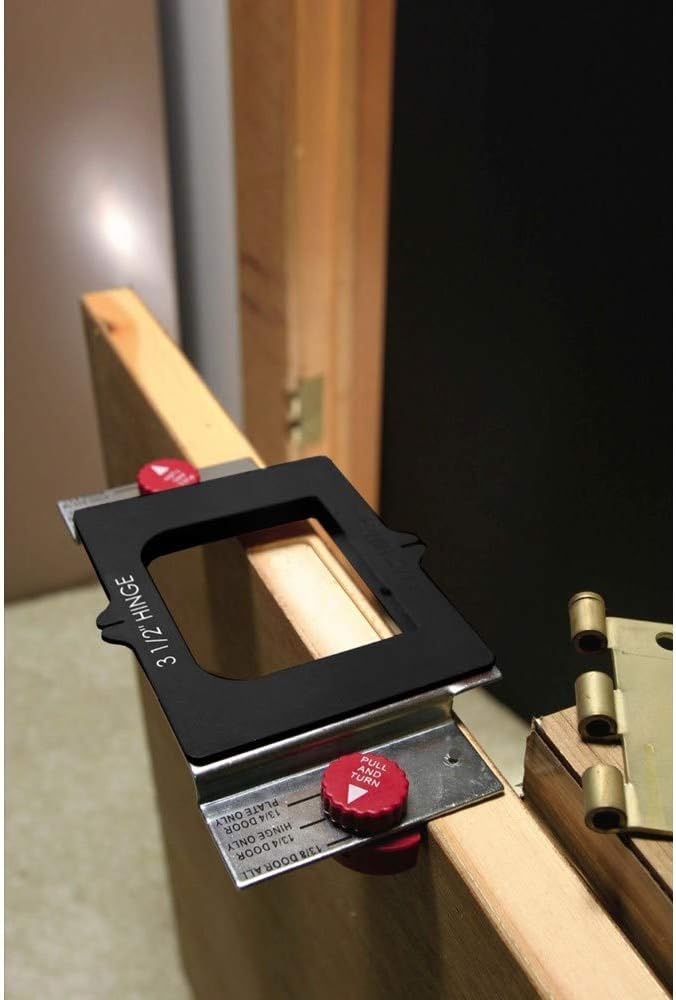

- Precise Alignment — Steel template frame automatically aligns to eliminate guesswork and prevent movement during routing.
- Versatile Sizing — Includes drop-in templates to handle multiple hinge sizes ranging from 2.5 inches to 4.5 inches.
- Complete Hardware Support — Features dedicated templates for both latch plates and strike plates on doors and jambs.
- Integrated Guidance — Equipped with a 0.5-inch ball-bearing router bit for smooth, accurate mortise cuts without separate bushings.
Product details
Description
Achieve professional-grade door installations and repairs with this comprehensive hardware routing kit. Designed to take the guesswork out of mortising, the system features a durable steel template frame that automatically aligns to ensure precise cuts for hinges, latch plates, and strike plates.
It accommodates standard door thicknesses and includes adjustable drop-in templates for various hinge sizes as well as a tungsten carbide router bit with an integrated ball bearing guide. Perfect for home improvement enthusiasts and carpenters alike, this authentic USA-imported kit delivers accurate, clean results on both doors and jambs.
How to use
- Select the appropriate template for your hinge, latch, or strike plate and snap it into the steel frame.
- Secure the jig to the door edge or jamb using the included mounting hardware, adjusting the thickness selector and cams as needed.
- Guide your router with the included ball-bearing bit along the inside edge of the template to carve a clean, flush mortise.
Ingredients
High-grade structural steel frame components, durable ABS plastic drop-in templates, tungsten carbide-tipped steel router bit with integrated ball bearing.
As printed by the brand. Check the pack label if you have an allergy.
Specifications
| Brand | Milescraft |
|---|---|
| UPC | 737888121304 |
| Ships from | USA (sourced directly), checked in Navi Mumbai |
| Sold by | Dropy.in |
Ratings & reviews
From our customers
Top reviews first: highest rated, with photos first
- Arkadipta5 ★
kaam ho gaya ekdum mast
kaam ho gaya ekdum mast. ghar ke purane darwaze change kar rhe the toh ye jig mangvaya tha. build quality strong hai aur steel frame apni jagah se hilta nahi hai routing karte time. ek baar measurement theek se lo toh baki sab easy ho jata hai. the adjustable thickness settings for standard doors made it super simple to fit without guessing. bhai paisa wasool cheez hai agar woodwork pasand hai toh.
- Venkat Y.4 ★
gharware basavnyasathi chaan ahe
mi youtube var he product pahila ani nantar magvla karan navin darwaza basvaycha hota. steel template frame mule line madhe perfect cut milto ani strike plate templates pan barobar basle. phakt tyache plastic drop-in parts khup heavy use sathi kadachit weak padu shaktat, pan aamchya gharguti kamasathi toh khupach barobar ahe. delivery thodi late zali pan product kharaach upyogi padla.
- Varun N.4 ★
box was a bit crushed
box was a bit crushed when the order arrived because transit handling is always rough here, but thankfully the steel frame inside was totally safe and undamaged. used it to fix three wooden doors in my study room this weekend. the bearing guided bit is really convenient since you dont need to fiddle around with extra bushing guides. only thing is you still have to take a chisel to square out the rounded corners after routing, which takes a little extra time. still saved me hours of manual labor though.
FAQs
Are you planning to install square or rounded corner hinges?
The included drop-in templates can easily rotate to support both standard square corners and rounded corner configurations like 1/4 inch and 5/8 inch radii.
What door thicknesses are compatible with this installation kit?
This kit is fully compatible with standard 1-3/8 inch and 1-3/4 inch thick doors and their corresponding frame jambs.
Do I need a separate router bushing to use this jig?
No separate router bushing is required because the kit includes a specialized 1/2-inch router bit with an integrated ball-bearing guide that travels directly along the template edge.
Is this Milescraft door hinge installation kit authentic and imported from the USA?
Yes, this product is 100% authentic and directly imported from the USA. Dropy sources all items straight from official American channels to ensure genuine quality.
What tools are included directly in the package?

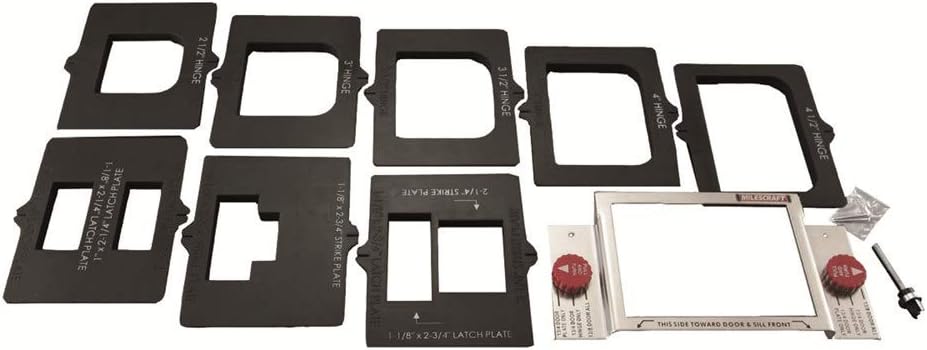

The package contains the steel template frame, assorted hinge and plate templates, a 1/2-inch tungsten carbide router bit, mounting hardware, and an instruction guide.
